    Curve / Flat Laminated Safety Glass Minimum Size 250 Mm-350 Mm Solid Structure

    Ask Lasest Price
    Brand Name : Crystal Base
    Model Number : TSG
    Certification : CE/CSI/BS/ASTM
    Price : negotiation
    Payment Terms : T/T ,L/C,DP or western Union
    Supply Ability : 3,000 Sqm per Day
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    Curve / Flat Laminated Safety Glass Minimum Size 250 Mm-350 Mm Solid Structure

    Curve / Flat Laminated Safety Glass Minimum Size 250 Mm-350 Mm Solid Structure


    Specification:

    1. Max size: 3000 x 9000mm ; Minimum : 180x 300mm

    2. Thickness: 3mm-19mm

    3. Color:clear,low-iron,F green,ocean blue,Fort blue,and other tinted glass.

    4. Edge: Flat edge,grind edge,fine polished edge,bevelled edge and others

    5. Corner:natural corner,grind corner,round corner with fine polished.

    6. Holes: Drill work available at customer's option


    Specification


    type

    max size(mm)

    min size(mm)

    max thickness(mm)

    min thickness(mm)

    min curve radius

    laminated glass

    6200X2800

    200X100

    36

    4

    420

    horizontal tempered glass

    5000X2440

    100X250

    19

    3.5


    horizontal tempered glass

    2000X5000

    100X250

    19

    8


    bent tempered glass:mutiple-curved surface

    2500X2440

    100X250

    19

    3.5

    1000


    Feature

    1. Safety: The laminated glass inlaid in buildings will still completely remain in the original frame when impacted by any external force even if the glass gets broken. Persons inside and outside the buildings will not be hurt by the splashing glass fragments.
    2. Hurricane and Earthquake Resistance: Even if the glass is broken, it will not fall to the ground in whole. Rather, it will stay where it was before it becomes broken.
    3. Explosion and Bullet Resistance: When many interlayers are adopted, different grades of bullet/explosion-proof glass can be produced.
    4. Anti-ultraviolet Radiation: It can very effectively block ultraviolet rays in the sunlight, with a blocking rate of as high as over 99%, to avoid ultraviolet radiation.
    5. Noise Reduction: PVB film can obstruct and absorb sound so as to reduce noise.


    Usage

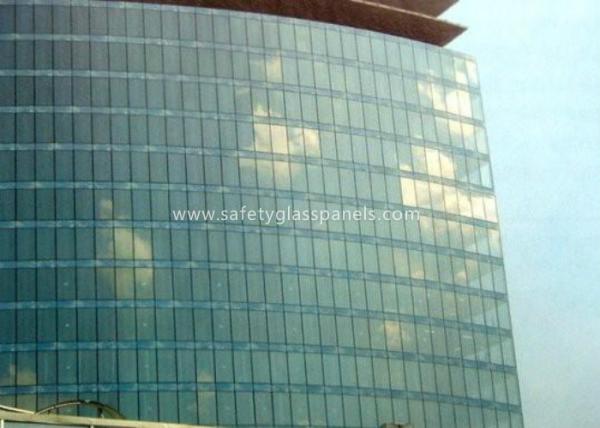

    storefronts, frameless facades, skylights, railings, framelsss doors, shower enclosures, table tops and furniture, fireplace enclosures, etc.


    our servers


    1. Delivery on time.

    2. Considerable after-sale services .

    3. Can choose different glass for substrate,like clear,low-iron,silk-printing,sandblasting,tinted glass,it can widely useage

    as the engineering requirements.

    4. Size and thickness can be as requirements in commonly, that is flexible.

    safety tempered lminated glass , 8mm laminated glass panel, 10mm clear laminated glass price
