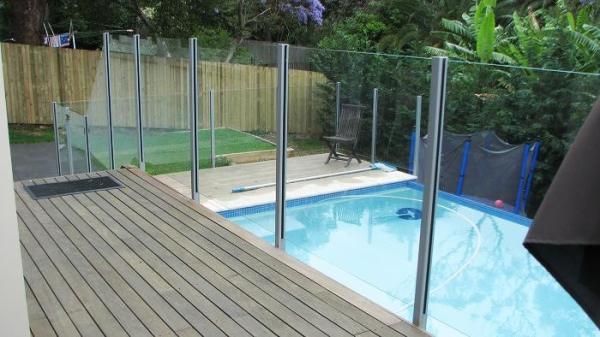

Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm

Suzhou Crystal Base New Materials Co.,Ltd
Contact Now
    Buy cheap Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm from wholesalers

    Buy cheap Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm from wholesalers
    • Buy cheap Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm from wholesalers
    • Buy cheap Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm from wholesalers

    Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm

    Ask Lasest Price
    Brand Name : Crystal Base
    Model Number : TSG
    Certification : CE/CSI/BS/ASTM
    Price : negotiation
    Payment Terms : T/T ,L/C,DP or western Union
    Supply Ability : 3,000 Sqm per Day
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm

    Flat Frameless Common Float Laminated glass Outdoor Swimming Pool Glass Fencing 3000x5000mm


    Specification


    Glass Type

    Common float laminated glass, tempered laminated glass,

    Screen printed laminated glass,

    Wire laminated glass, metal mesh laminated glass,

    Acid etched laminated glass, etc.

    Glass Color

    Clear, Extra clear, Freen Green, Dark Green, Ford blue, Dark Blue,

    Bronze, Euro Grey, Dark Grey, etc.

    PVB/SGP ColorClear, Green, Blue, Bronze, Grey, Milky white, Pink, Red, any color in RAL
    Thickness

    3+0.38+3mm, 4+0.38+4mm, 5+0.76+5mm, 6+0.76+7mm,

    8+1.14+8mm, 10+1.15+10mm, etc.

    Size

    Max:3000x5000mm; Min:300x300mm

    Normal size: 1830x2440mm, 2140x3300mm, etc

    ShapeFlat, Curve, Hot bent
    Processing

    Heat soaked, Polished edge(flat, bevel, round, pencil, ogee, etc.), Drill holes,

    Cut notches, Silkscreen, Acid etched, Logo, etc

    QualityControl by BS6206 & Conforms to CE-ENISO12543-2-2011& ENISO12543-3-2011

    Benefits


    . Ensure good drainage of the framework so as to avoid the accumulation of water

    next to the glass edges.
    . The leak-proof and tightness seals must be compatible with the PVB interlayer.
    . Mineral oil putty is forbidden especially linseed oil putty, certain acrylic & silicones.
    . Cleaning solution with acidic base is forbidden for use to clean glass as there is a

    risk of contact with the edges of the glass.


    Applications


    . Flat/ Curved laminated glass railing

    . Silkcreen printed laminated glass railing

    . Acid etched laminated glass railing


    Advantages

    1). No tong marks on the glass as TGI adopts the horizontally tempering process.
    2). 5 times harder than ordinary annealed glass.
    3). Once breakage occurs, the glass disintegrates into small cubical fragments which are relatively armless to human body.
    4). It withstands abrupt change of temperature. For example, a piece of 5mm tolerate the temperature variations within the range of 200°C.

    Product Quality


    1). Conforming to ASTM1048, ANSI Z97.1 , the American standard
    2). Conforming to BS6206, the British standard
    3). Conforming to GB 15763.2,GB17841 , 3C the Chinese standard.
    4). Australia AS/NZS 2208 certification
    5). SGCC certification
